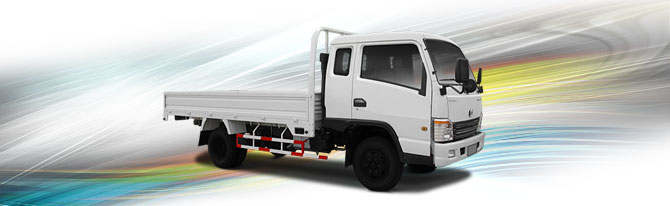

This space cab truck can be configured with 3-way opening cargo deck. The gross vehicle weight is 4860 kg. The payload of this light duty truck can reach 2500 kg. The maximum speed of this space cab truck is more than 90 km/h. Our 2.5 ton light trucks adopt double action shock absorbers to keep reliable and smooth.
We are one of the authorized exporters of light duty truck manufacturing enterprises. Our main scope of business includes space cab truck export and production. In addition to 2.5 ton light truck, we also offer mini truck, light truck, micro-bus, pickup, SUV and various special vehicles. Our space cab trucks are marketable in overseas markets according to our rich marketing and management experience. Each light duty truck be inspected after production, and then receives the quality certificate if passes the inspection.
| Features of Space Cab Truck |
| Type |
|
2.5 Ton |
| A/C & Audio |
AM/FM cassette stereo, MP3 interface |
■ |
| AM/FM CD player |
□ |
| Front defroster |
■ |
| A/C |
□ |
| Exterior |
Front fog lamps |
■ |
| Adjustable height of headlamp |
■ |
| Steel wheels |
■ |
| Metallic paint |
□ |
| Roof-type ventilation |
■ |
| 3-way opening cargo deck |
■ |
| 5-way opening cargo deck |
- |
| Interior of Light Duty Truck |
Cigar lighter & ash tray |
■ |
| Fabric seats |
■ |
| Reclining driver seat |
■ |
| Engine tachometer |
■ |
| Wood-grain-style inner trim |
■ |
| Mechanical |
Power assisted steering |
□ |
| Power assisted clutch |
- |
| Cabin tilting mechanism |
■ |
| Electrical engine stop |
■ |
| Tilting steering wheel |
■ |
| Safety |
Adjustable seat belts |
■ |
| Laminated front wind shield glass |
□ |
| Air pressure gauge |
■ |
| Air brake |
■ |
| Pneumatic parking brake |
- |
| Exhaust brake |
- |
| |
|
|
|
|
| Notice: ■ = Standard □ = Optional - = Not available |
Specification of Space Cab Truck Dimension
| Model |
BJ1044PPT41 |
| Driving type |
LHD |
| Overall length (mm) |
5985 |
| Overall width (mm) |
2060 |
| Overall height (mm) |
2320 |
| Wheelbase of light duty truck (mm) |
3200 |
| Tread (front/rear) (mm) |
1460/1470 |
| Curb vehicle weight (kg) |
2165 |
| Gross vehicle weight (kg) |
4860 |
| Payload of space cab truck (kg) |
2500 |
| Max. vehicle speed (km/h) |
≥90 |
| Cabin width (mm) |
1780 |
| Cargo body (inside) (mm) |
Length |
3880 |
| Width |
1900 |
| Height |
400 |
Engine of Light Truck 2.5 Ton
| Model |
BJ1044PPT41 |
| Engine model |
4D26 |
| Type |
Diesel, 4-cylinder, in line, turbocharged, intercooled, with ECU |
| Bore & stroke (mm) |
90x102 |
| Displacement (cc) |
2596 |
| Compression ratio |
18 : 1 |
| Max. power(KW/rpm) |
68/3000 |
| Max. torque(N.m/rpm) |
238/2000 |
| Emission |
Euro 3 |
| Fuel tank capacity (L) |
70 |
Drive Train of Space Cab Truck
| Model |
BJ1044PPT41 |
| Clutch |
Hydraulic, single plate, dry type diaphragm spring |
| Gearbox type |
5 speed manual |
| Gearbox model |
LG5-26 |
| Max. gradeability (%) |
30 |
Chassis of Light Duty Truck
| Model |
BJ1044PPT41 |
| Frame |
Ladder shaped,' ]' section |
| Suspension, front/rear |
Leaf springs |
| Shock absorber, front/rear |
Double action shock absorbers |
| Axle model, front/rear |
BJ1041 |
| Steering |
Recirculating-ball |
| Brake type |
Air brake |
| Brake, front/rear |
Drum/drum |
| Tires |
7.00-16 |
