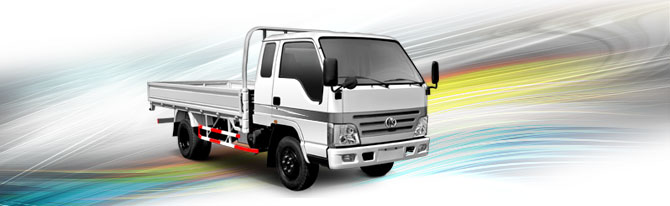

Features of Space Cab Cargo Truck
1. This 2.5 ton light-duty truck employs cabin tilting mechanism. The cabin is 1995 mm in width.
2. Our space cab cargo trucks adopt advanced front disc braking device with air braking system.
3. 3-points seat bells are installed in this 2.5 ton light-duty truck in order to guarantee safety. Additionally, the laminated front wind shield is optional.
4. The overall length of this space cab cargo truck is 5990 mm.
5. The gross vehicle weight is up to 5255 kg.
Founded in April 5, 2004, LANTYPC Vehicle is a professional manufacturer and supplier of space cab cargo trucks in China. In addition to 2.5 ton light-duty truck, we also provide single cab mini truck, double cab mini truck, single cab light truck, space cab truck, 3-8 ton light truck, mini bus, pickup truck, box truck, micro bus, sport utility vehicle, electric car, freezer truck as well as semi-trailer truck. Our space cab cargo trucks are popular in Jamaica, Ukraine, Russia, Georgia, Latvia, Angola, Ghana, Liberia, Yemen, Syria, Saudi Arabia as well as other countries.
| Features of Space Cab Cargo Truck |
| Payload |
|
1.5 T |
2.5 T |
| A/C & Audio |
AM/FM Cassette stereo |
■ |
■ |
| AM/FM CD player |
□ |
□ |
| Front defroster |
■ |
■ |
| A/C |
- |
□ |
| Exterior |
Front fog lamps |
■ |
■ |
| Steel wheels |
■ |
■ |
| 6.50-16 tires |
■ |
■ |
| 7.00-16 tires |
□ |
□ |
| Radial tires |
- |
- |
| Metallic paint |
□ |
□ |
| 3-way opening cargo deck |
■ |
■ |
| 2014 new front face |
□ |
□ |
| Interior |
Cigar lighter & ash tray |
■ |
■ |
| Fabric seats |
■ |
■ |
| Reclining driver seat |
■ |
■ |
| Engine tachometer |
■ |
■ |
| Wood-grain-style inner trim |
- |
- |
| Mechanical |
Cabin tilting mechanism |
■ |
■ |
| Electrical engine stop |
■ |
■ |
| Tilting steering wheel |
■ |
■ |
| Power steering |
□ |
□ |
| Safety |
3-points seat bells |
■ |
■ |
| Laminated front wind shield |
□ |
□ |
| |
|
|
|
| Notice: |
|
|
|
| ■ = Standard □ = Optional - = Not available |
|
Specification of Space Cab Cargo Truck Dimension
| Model |
BJ1044PPU52 |
| Overall length (mm) |
5990 |
| Overall width (mm) |
2020 |
| Overall height (mm) |
2220 |
| Wheelbase of 2.5 ton light-duty truck (mm) |
3308 |
| Tread (front/rear) (mm) |
1580/1395 |
| Ground clearance (mm) |
180 |
| Curb vehicle weight (kg) |
2560 |
| Gross vehicle weight (kg) |
5255 |
| Payload of space cab cargo truck (kg) |
2500 |
| Max. vehicle speed (km/h) |
≥90 |
| Cabin width (mm) |
1780 |
| Cargo body (inside) (mm) |
Length |
3880 |
| Width |
1900 |
| Height |
400 |
| Cabin width (mm) |
1780 |
Engine of Space Cab Cargo Truck
| Model |
BJ1044PPU52 |
| Engine model |
CY4102-C3F |
| Type |
Vertical in-line, 4-clylinder, diesel |
| Bore & stroke (mm) |
102x118 |
| Displacement (cc) |
3707 |
| Compression ratio |
17.5:1 |
| Max. power(kw/rpm) |
66/3200(EURO I), 70/3200(EURO II) |
| Max. torque(N.m/rpm) |
230/1800-2000 |
| Emission |
Euro I / Euro II |
| Fuel tank capacity (L) |
90 |
Drive Train of 2.5 Ton Light-Duty Truck
| Model |
BJ1044PPU52 |
| Clutch |
Hydraulic, single plate, dry type diaphragm spring |
| Gearbox type |
5 speed manual |
| Gearbox model |
LC5T97 |
| Max. gradeability (%) |
30 |
Chassis of Space Cab Cargo Truck
| Model |
BJ1044PPU52 |
| Frame |
Ladder shaped,' ]' section |
| Suspension, front/rear |
Leaf springs |
| Shock absorber, front/rear |
Double action shock absorbers |
| Axle model, front/rear |
BJ1044 |
| Steering |
Recirculating-ball |
| Brake type |
Air brake |
| Brake, front/rear |
Disc/drum |
| Min. turning radius (m) |
6.5 |
| Tires |
6.50-16LT |
