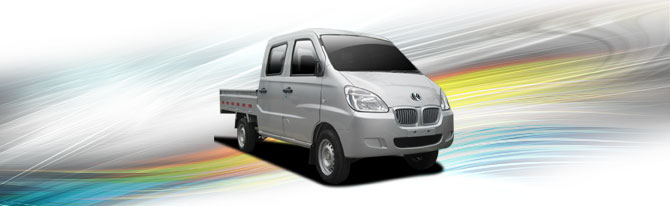

This double cab mini truck can be configured with 5-speed manual gearbox. Equipped with front slip, this Jupiter mini-truck makes drivers feel comfortable and convenient. Central locking and fog lamp can be optional for this double cab mini truck in order to guarantee safety.
Our double cab mini trucks are manufactured based on our thoughtful market research in accordance with the newest trend of small lorries. This 0.8 ton double cab mini truck can contain five persons. The rated payload is 490 kg. The maximum speed of this mini-truck can reach 90 km/h.
Features of Double Cab Mini Truck |
| |
Model |
Mini-truck |
| Comfort & Convenience |
Radio & MP3 input |
Radio |
| Front slip & adjustable seat |
|
| Heater |
|
| Middle double integrated folding seat |
— |
| Middle twin independent folding seat |
— |
| Rear double integrated folding seat |
— |
| Front & rear A\C |
— |
| Front A/C |
□ |
| Exterior |
Sliding passenger door |
— |
| Swing side door for passenger |
— |
| Steel wheel rim |
|
| Aluminum-alloy wheel rim |
□ |
| Front combination lamp |
□ |
| Folding key |
|
| Same color front bumper |
□ |
| Black front bumper |
|
| Interior |
Interior fuel tank opener |
— |
| 4-spoke steering wheel |
|
| Ashtray & lighter |
|
| Folding cup holder |
Cup holder |
| Safety |
Central locking |
□ |
| Fog lamp |
□ |
| High-mount brake lamp |
— |
| Seat belt |
|
| Steering column lock |
|
| Note: ■= Standard □ = Optional - =Not available |
|
Specification of Double Cab Mini Truck
Dimension
| Model |
SY1020 T22 |
| Fuel type |
Gasoline/Diesel |
| Driving |
Rear drive, middle engine |
| Overall size (L×W×H) (mm) |
4758x1510x1870 |
| Wheelbase (mm) |
2760 |
| Tread, front/rear (mm) |
1300/1310 |
| Min ground clearance (mm) |
165 |
| Curb vehicle weight (kg) |
950 |
| Gross vehicle weight (kg) |
1765 |
| Cargo box (LxWxH) |
2080x1506x340 |
| Seating capacity (persons) |
5 |
| Rated payload(kg) |
490 |
| Fuel tank capacity(L) |
40 |
Engine for Double Cab Mini Truck
| Model |
SY1020 T22 Mini-truck |
SY1020 T22 Mini-truck |
| Engine Model |
DLCG12 |
QC380Q |
| Type |
4 cylinders in line, MFI,
DOHC gasoline |
3 cylinders in line, 4 stroke, direct injection |
| Displacement(cc) |
1216 |
1357 |
| Max. Power (kw) |
62/6000 |
20/3000 |
| Max. torque (N.m) |
106/4500 |
56/2100 |
| Compression ratio |
10.2:1 |
18:1 |
| Fuel consumption at 40 (kw/h) (L/100km) |
- |
- |
| Emission |
Euro 4 |
Euro 1 |
System for 0.8 Ton Double Cab Mini Truck
| Model |
SY1020 T22 Mini-truck |
| Gearbox |
5 speed manual |
| Steering |
Manual rack & pinion |
| Suspension front |
MacPherson independent suspension |
| Suspension rear |
6 longitudinal leaf springs on left & right |
| Brake Front/ rear |
Front disc, rear drum, hydraulic, dual loop |
| Min. turning radius (m) |
6 |
| Max. gradeability (°) |
≧30 |
| Tires |
165/70R14 |
| Max. vehicle speed (km/h) |
90 |
