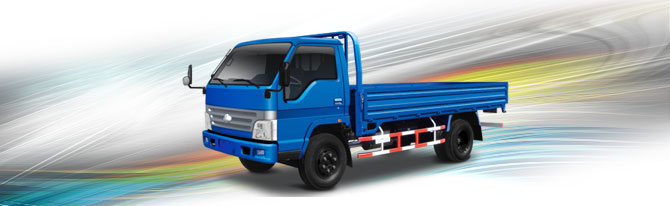

This Pluto B1 2.5 ton light truck adopts localized ISUZU NKR chassis and leading front wheel disc braking system. Our single cab trucks are also equipped with newly-designed modern cabin (1780 mm in width) which can be tilted by 45 degrees for the convenience of daily maintenance.
The Pluto B1 2.5 ton light duty trucks are installed advanced Chinese turbo diesel engines which can meet Euro 1 or Euro 2 emission standard.
Our main products include mini truck, light duty truck, double cab mini truck, mini bus, pickup truck, single cab truck, space cab truck, 2.5 ton light truck, box truck, micro bus, sport utility vehicle, electric car, freezer truck as well as semi-trailer truck. As a light duty truck manufacturer and exporter in China, our 2.5 ton single cab trucks are marketable in overseas markets according to our rich marketing and management experience. If you need more information about our 2.5 ton light trucks, please feel free to contact us.
| Features of 2.5 Ton Light Truck |
| Payload |
|
1.5 T |
2.5 T |
| A/C & Audio |
AM/FM Cassette stereo |
■ |
■ |
| AM/FM CD player |
□ |
□ |
| Front defroster |
■ |
■ |
| A/C |
- |
□ |
| Exterior |
Front fog lamps |
■ |
■ |
| Steel wheels |
■ |
■ |
| 6.50-16 tires |
■ |
■ |
| 7.00-16 tires |
□ |
□ |
| Radial tires |
- |
- |
| Metallic paint |
□ |
□ |
| 3-way opening cargo deck |
■ |
■ |
| 2014 new front face |
□ |
□ |
| Interior |
Cigar lighter & ash tray |
■ |
■ |
| Fabric seats |
■ |
■ |
| Reclining driver seat |
■ |
■ |
| Engine tachometer |
■ |
■ |
| Wood-grain-style inner trim |
- |
- |
| Mechanical |
Cabin tilting mechanism |
■ |
■ |
| Electrical engine stop |
■ |
■ |
| Tilting steering wheel |
■ |
■ |
| Power steering |
□ |
□ |
| Safety |
3-points seat bells |
■ |
■ |
| Laminated front wind shield |
□ |
□ |
| |
|
|
|
| Notice: |
|
|
|
| ■ = Standard □ = Optional - = Not available |
|
Specification of 2.5 Ton Light Truck Dimension
| Model |
BJ1044P1U52 |
| Driving type |
LHD |
| Overall length (mm) |
5990 |
| Overall width (mm) |
2020 |
| Overall height (mm) |
2220 |
| Wheelbase of light duty truck (mm) |
3308 |
| Tread (front/rear) (mm) |
1580/1395 |
| Ground clearance (mm) |
180 |
| Curb vehicle weight (kg) |
2395 |
| Gross vehicle weight (kg) |
5090 |
| Payload of single cab truck (kg) |
2500 |
| Max. vehicle speed (km/h) |
≥95 |
| Cabin width (mm) |
1780 |
| Cargo body (inside) (mm) |
Length |
4250 |
| Width |
1900 |
| Height |
400 |
Engine of 2.5 Ton Light Truck
| Model |
BJ1044P1U52 |
| Engine model |
CY4102-C3F |
| Type |
Vertical in-line, 4-clylinder, diesel |
| Bore & stroke (mm) |
102x118 |
| Displacement (cc) |
3707 |
| Compression ratio |
17.5:1 |
| Max. power(kw/rpm) |
66/3200(EURO I), 70/3200(EURO II) |
| Max. torque(N.m/rpm) |
230/1800-2000 |
| Emission |
Euro 1/Euro II |
| Fuel tank capacity (L) |
90 |
Drive Train of Single Cab Truck
| Model |
BJ1044P1U52 |
| Clutch |
Hydraulic, single plate, dry type diaphragm spring |
| Gearbox type |
5 speed manual |
| Gearbox model |
LC5T97 |
| Max. gradeability (%) |
30 |
Chassis of 2.5 Ton Light Truck
| Model |
BJ1044P1U52 |
| Frame |
Ladder shaped,' ]' section |
| Suspension, front/rear |
Leaf springs |
| Shock absorber, front/rear |
Double action shock absorbers |
| Axle model, front/rear |
BJ1044 |
| Steering |
Recirculating-ball |
| Brake type |
Air brake |
| Brake, front/rear |
Disc/drum |
| Min. turning radius (m) |
6.5 |
| Tires |
6.50-16LT |
