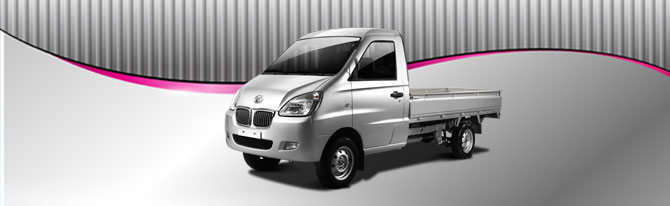

Jupiter S1 single cab mini truck is designed and manufactured based on our thoughtful market research in accordance with the newest trend of mini trucks. This small lorry has introduced advanced concept, technology and workmanship. Quality, design and function are key concepts in the development of our small lorry. After years of research and design, the latest Jupiter S1 single cab mini trucks come to the market with a shining and impressive image. S1 series mini trucks include the min-bus version (S6), cargo van version (S6) as well as 0.8 ton single cab mini truck (S1).

JUPITER S1Mini-truck

Single Cab / Double Cab
Gasoline / Diesel

SPECIFICATIONS
Model		SY1020	SY1020 T22
Driving		Rear drive, middle engine
Cabin		Single cab	Double cab
DIMENSION & WEIGH
Overall length	(mm)	4592	4758
Overall width	(mm)	1510	1510
Overall height	(mm)	1870	1870
Wheel base	(mm)	2760	2760
Cargo box (LxWxH)	(mm)	2706x1506x396	2080x1506x340
Tread, front/ rear	(mm)	1300\1300	1300/1310
Ground clearance	(mm)	165(gasoline); 170(diesel)	165(gasoline); 170(diesel)
Curb vehicle weight	(kg)	890	950
Gross vehicle weight	(kg)	1820	1765
Rated payload	(kg)	890(gasoline); 1000(diesel)	490
Seating capacity	(persons)	2	5
Fuel tank capacity	(L)	40	40
SYSTEM
Gearbox		5 speed manual	5 speed manual
Ratio		1st:3.652; 2nd:1.948; 3rd:1.424; 4th:1.000; 5th:0.795; Reverse:3.466	-
Final drive ratio		5.125	-
Steering		Manual rack & pinion
Suspension	Front	MacPherson independent suspension

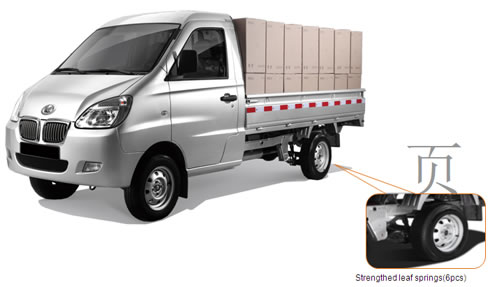

	Rear	6 longitudinal leaf springs on left & right
Brake	Front/ rear	Front disc, rear drum, hydraulic, dual loop
Min. turning radius	(m)	6	6
Max. gradeability	(°)	≧30
Tires		16570R14
Max. vehicle speed	(km/h)	105	90
ENGINE (for all models)
Model		DL465Q5	QC380Q	DLCG12
Type		4 cylinders in line, MFI, gasoline	3 cylinders in line, 4 stroke, direct injection	4 cylinders in line, MFI, DOHC gasoline
Displacement	(cc)	998	1357	1216
Max. power	(kW/r/min)	45/5200	20/3000	62/6000
Max. torque	(N.m/r/min)	85/2800-3200	56/2100	106/4500
Compression ratio		9.5:1	18:1	10.2
Fuel consumption at 50 kw\h (L\ 100km)		≦5.5	-	-
Emission		Euro 3	Euro 1	Euro 4

FEATURES
	Model		Mini-truck
Comfort & Convenience	Radio & MP3 input		Radio
	Front slip & adjustable seat		<
	Heater		<
	Middle double integrated folding seat		—
	Middle twin independent folding seat		—
	Rear double integrated folding seat		—
	Front & rear A\C		—
	Front A/C		□
Exterior	Sliding  passenger door		—
	Swing side door for passenger		—
	Steel wheel rim		<
	Aluminum-alloy wheel rim		□
	Front combination lamp		□
	Folding key		<
	Same color front bumper		□
	Black front bumper		<
Interior	Interior fuel tank opener		—
	4-spoke steering wheel		<
	Ashtray & lighter		<
	Folding cup holder		Cup holder
Safety	Central locking		□
	Fog lamp		□
	High-mount brake lamp		—
	Seat belt		<
	Steering column lock		<
Note:   ■= Standard   □ = Optional     - =Not available
