Description

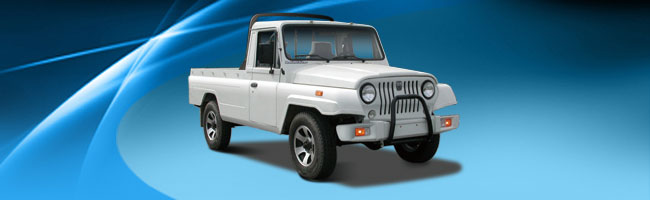

Pluto BZ1 4WD single cab trucks are the civil-version of Pluto series military vehicles, which have high quality and reliable performance in the past 10 years.
Compared with original military vehicles, our 4WD single cab trucks have longer wheelbase. This 4WD truck can be equipped with both gasoline and diesel engines. The most impressive advantages of 4WD single cab trucks are their spacious cabin, excellent cross country performance, as well as the lowest purchasing cost among all similar vehicles.
The 4WD trucks are the wonderful choice for you to enjoy driving in all road conditions.
LANTYPC Vehicle is a professional 4WD truck manufacturer and supplier in China. In addition to 4WD single cab truck, we also offer 4WD truck double cab. Besides, our main products are mini truck, light truck, box truck, single cab truck, space cab truck, cargo truck, mini bus, pickup truck, SUV as well as special vehicles. Our 4WD single cab trucks are marketable in overseas markets according to our rich marketing and management experience.
| Features of 4WD Single Cab Truck |
| A/C & Audio |
Air conditioner |
|
□ |
| AM/ FM radio cassette player |
■ |
| Mechanical |
Power steering |
|
■ |
| Front disc brake |
|
■ |
| 5 speed gearbox |
|
■ |
| Exterior of 4WD truck |
Aluminum wheels |
|
■ |
| Metallic paint |
|
□ |
| Electric towing device |
□ |
| Interior |
Fabric seats |
|
■ |
| Leather-trimmed seats |
- |
| |
|
|
|
|
| Note: ■= Standard □ = Optional - = Not available |
Specification of 4WD Single Cab Truck Dimension
| Model |
BJ2032HFD33 / BJ2032HFT31 |
| Driving type |
LHD |
| Overall length (mm) |
4583 |
| Overall width (mm) |
1768 |
| Overall height of 4WD single cab truck (mm) |
1930 |
| Cargo deck (inside) Length (mm) |
2050 |
| Cargo deck (inside) Width (mm) |
1500 |
| Cargo deck (inside) Height (mm) |
480 |
| Wheelbase (mm) |
2750 |
| Tread, front/ rear (mm) |
1478/1478 |
| Ground clearance (mm) |
185 |
| Curb weight of 4WD truck (kg) |
1550 |
| Gross vehicle weight (kg) |
2570 |
| Seating capacity (persons) |
2 |
| Fuel tank capacity (L) |
70 |
Engine of 4WD Single Cab Truck
| Model |
BJ2032HFD33 |
BJ2032HFT31 |
| Engine model |
4G22B |
BJ493ZQ3 |
| Technology source |
Local engine |
ISUZU |
| Type |
4-cylinder, DOHC, Gasoline |
ISUZU 4JB1 technology, 4-cylinder
in line, direct injection,
turbocharged |
| Displacement(cc) |
2237 |
2771 |
| Max. power of 4WD truck (kw/rpm) |
81/4800 |
70/3600 |
| Max. torque(N.m/rpm) |
178/3200-3600 |
225/2300 |
| Emission standard |
Euro IV |
Euro III |
System of 4WD Single Cab Truck
| Model |
BJ2032HFD33 |
BJ2032HFT31 |
| Gearbox |
5 speed manual |
| Steering |
Circulating-ball |
| Suspension front |
Leaf spring with shock absorbers |
| Suspension rear |
Leaf springs |
| Braking front |
Discs |
| Braking rear |
Drum |
| Clutch of 4WD truck |
Single plate, dry type diaphragm spring with tensional vibration damper |
| Min. turning radius(m) |
5.5 |
| Tires |
215/80R16 |
| Max. vehicle speed(km/h) |
≥95 |
