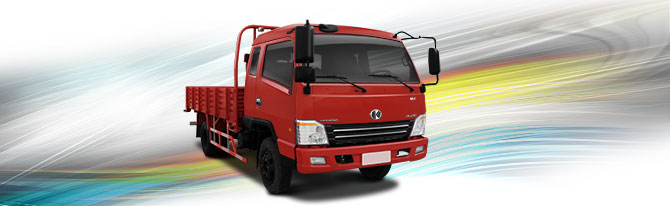

PLUTO BL1 light duty truck is of a world-class standard and steel mold manufacturing. Three-way opening cargo deck is installed for this 3 ton space cab truck. The technical and technological level has reached advanced level. Double action shock absorbers make this 3 ton space cab truck stable and reliable. The cabin width of this light duty truck is about 1995 mm. Adjustable seat belts, air pressure gauge and air brake device can make sure the safety of this 3 ton space cab truck.
LANTYPC Vehicle provides mini truck, light duty truck, mini bus and pickups for sale. As a manufacturer of small lorries in China, we have exported our single cab mini trucks, 1.5 ton single cab light trucks, 2.5 ton space cab trucks, 3 ton space cab trucks, cargo trucks, box trucks, 4WD trucks, electric cars, freezer trucks and semi-trailers to USA, Bahamas, Colombia, Namibia, Sudan, Poland, Singapore as well as other countries. Our light duty trucks should do the customs inspection before exporting. If you need our 3 ton space cab trucks or other small lorries, please contact us.
| Features of 3 Ton Space Cab Truck |
| Type |
|
3 Ton |
| A/C & Audio |
AM/FM cassette stereo, MP3 interface |
■ |
| AM/FM CD player |
□ |
| Front defroster |
■ |
| A/C |
□ |
| Exterior of light duty truck |
Front fog lamps |
■ |
| Adjustable height of headlamp |
■ |
| Steel wheels |
■ |
| Metallic paint |
□ |
| Roof-type ventilation |
■ |
| 3-way opening cargo deck |
■ for space cab |
| 5-way opening cargo deck |
■ for single cab |
| Interior of 3 ton space cab truck |
Cigar lighter & ash tray |
■ |
| Fabric seats |
■ |
| Reclining driver seat |
■ |
| Engine tachometer |
■ |
| Wood-grain-style inner trim |
■ |
| Mechanical |
Power assisted steering |
□ |
| Power assisted clutch |
- |
| Cabin tilting mechanism |
■ |
| Electrical engine stop |
■ |
| Tilting steering wheel |
■ |
| Safety |
Adjustable seat belts |
■ |
| Laminated front wind shield glass |
□ |
| Air pressure gauge |
■ |
| Air brake |
■ |
| Pneumatic parking brake |
- |
| Exhaust brake |
□ |
| Notice: ■ = Standard □ = Optional - = Not available |
Specification of 3 Ton Space Cab Truck Dimension
| Model |
BJ1044PPU54 |
| Driving type |
LHD |
| Overall length (mm) |
5990 |
| Overall width (mm) |
2240 |
| Overall height of light duty truck (mm) |
2320 |
| Cabin width (mm) |
1995 |
| Wheelbase (mm) |
3308 |
| Tread, front/rear (mm) |
1665/1525 |
| Cargo deck (inside) length (mm) |
3880 |
| Cargo deck (inside) width (mm) |
2060 |
| Cargo deck (inside) height (mm) |
460 |
| Curb weight of 3 ton space cab truck (kg) |
2565 |
| Gross vehicle weight (kg) |
5760 |
| Payload of light duty truck (kg) |
3000 |
| Max. vehicle speed (km/h) |
≥95 |
| Seating capacity (persons) |
3 |
Engine of 3 Ton Space Cab Truck
| Model |
CY4102-C3F |
| Type |
4-cylinder,turbo-charged, diesel |
| Bore & stroke (mm) |
102x118 |
| Displacement (cc) |
3707 |
| Compression ratio |
17.5:1 |
| Max. power (KW/rpm) |
66/3200 |
| Max. torque (N.m/rpm) |
230/1800 |
| Emission |
Euro 1 |
| Fuel tank capacity (L) |
70 |
Drive Train of Light Duty Truck
| Model |
BJ1044PPU54 |
| Clutch |
Hydraulic, single plate, dry type diaphragm spring |
| Gearbox type |
5 speed manual |
| Gearbox model |
LC5T97 |
| Max. gradeability (%) |
30 |
Chassis of 3 Ton Space Cab Truck
| Model |
BJ1044PPU54 |
| Frame |
Ladder shaped,' ]' section |
| Suspension, front/rear |
Leaf springs |
| Shock absorber, front/rear |
Double action shock absorbers |
| Axle, front/rear |
BJ1065 |
| Steering |
Recirculating-ball |
| Brake type |
Air brake |
| Brake, front/rear |
Disc/drum |
| Min. turning radius (m) |
6.5 |
| Tires |
7.50-16 |
