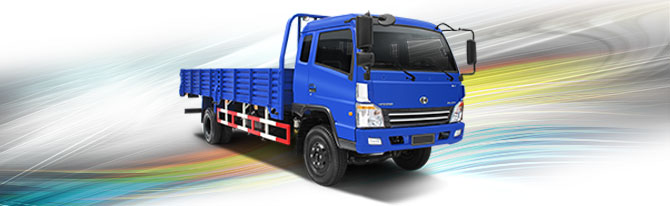

This 4.5 ton light-duty truck has inherited the advantages of the Pluto B1 cargo truck, including safety, reliability and economical efficiency. AM/FM cassette stereo and MP3 interface can be installed in this light-duty truck.
Compared to 3 ton space cab truck, this cargo truck uses five-way opening cargo deck. Power assisted steering and power assisted clutch are used for our light-duty trucks. Its maximum torque is 230/1800 N.m/rpm.
LANTYPC Vehicle is one of the most renowned light-duty truck exporters and cargo truck suppliers in China. Based on the technological cooperation with different manufacturers, our space cab trucks have been successfully exported to overseas markets. We supply different models of vehicles, such as mini truck, light truck, micro-bus, pickup, SUV and special vehicles. We can deliver different light-duty trucks in same containers in order to save transportation expenses.
| Feature of Light-Duty Truck |
| Type |
|
4.5 Ton |
| A/C & Audio |
AM/FM cassette stereo, MP3 interface |
■ |
| AM/FM CD player |
□ |
| Front defroster |
■ |
| A/C |
□ |
| Exterior of space cab truck |
Front fog lamps |
■ |
| Adjustable height of headlamp |
■ |
| Steel wheels |
■ |
| Metallic paint |
□ |
| Roof-type ventilation |
■ |
| 3-way opening cargo deck |
- |
| 5-way opening cargo deck |
■ |
| Interior of cargo truck |
Cigar lighter & ash tray |
■ |
| Fabric seats |
■ |
| Reclining driver seat |
■ |
| Engine tachometer |
■ |
| Wood-grain-style inner trim |
■ |
| Mechanical |
Power assisted steering |
■ |
| Power assisted clutch |
■ |
| Cabin tilting mechanism |
■ |
| Electrical engine stop |
■ |
| Tilting steering wheel |
■ |
| Safety |
Adjustable seat belts |
■ |
| Laminated front wind shield glass |
□ |
| Air pressure gauge |
■ |
| Air brake |
■ |
| Pneumatic parking brake |
- |
| Exhaust brake |
□ |
| Notice: ■ = Standard □ = Optional - = Not available |
Specification of Light-Duty Truck Dimension
| Model |
BJ1074PPU55 |
| Driving type |
LHD |
| Overall length (mm) |
6360 |
| Overall width of space cab truck (mm) |
2240 |
| Overall height (mm) |
2320 |
| Cabin width of light-duty truck (mm) |
2000 |
| Wheelbase (mm) |
3670 |
| Tread, front/rear (mm) |
1665/1525 |
| Ground clearance (mm) |
180 |
| Cargo deck (inside) length (mm) |
4250 |
| Cargo deck (inside) width (mm) |
2060 |
| Cargo deck (inside) height (mm) |
450 |
| Curb weight of space cab truck (kg) |
2900 |
| Gross vehicle weight (kg) |
7595 |
| Payload of cargo truck (kg) |
4500 |
| Max. vehicle speed (km/h) |
≥95 |
| Seating capacity (persons) |
3 |
Engine of Light-Duty Truck
| Model |
CY4102-C3F |
| Type |
4-cylinder,turbo-charged, diesel |
| Bore & stroke (mm) |
102x118 |
| Displacement (cc) |
3707 |
| Compression ratio |
17.5:1 |
| Max. power (kw/rpm) |
66/3200 |
| Max. torque (N.m/rpm) |
230/1800 |
| Emission |
Euro 1 |
| Fuel tank capacity (L) |
70 |
Drive Train of Space Cab Truck
| Model |
BJ1074PPU55 |
| Clutch |
Hydraulic, single plate, dry type diaphragm spring |
| Gearbox type |
5 speed manual |
| Gearbox model |
LC5T97 |
| Max. gradeability (%) |
30 |
Chassis of Light-Duty Truck
| Model |
BJ1074PPU55 |
| Frame |
Ladder shaped,' ]' section |
| Suspension, front/rear |
Leaf springs |
| Shock absorber, front/rear |
Double action shock absorbers |
| Axle, front/rear |
BJ1065 |
| Steering |
Recirculating-ball |
| Brake type |
Air brake |
| Brake, front/rear |
Disc/drum |
| Min. turning radius (m) |
6.5 |
| Tires |
7.50-16 |
