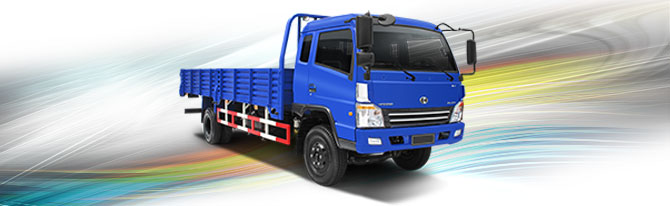

Pluto B1L 8 ton space cab truck is a type of medium-sized commercial vehicle, and 2000 mm cabin will give a very comfortable driving and seating. The overall length of this light-duty truck is 8400 mm.
This 8 ton space cab truck is equipped with adjustable seat belt, air pressure gauge, air brake, pneumatic parking brake as well as exhaust brake to guarantee safety. The laminated front wind shield glass is also optional.
Thicker springs ensure this light-duty truck can be loaded to its maximum and keeps its stability in case of overloading. Independent dual storage cylinders will guarantee effective drying of compressed air for generating great braking effect.
LANTYPC Vehicle is a professional light-duty truck manufacturer and supplier in China. Our main scope of business includes 8 ton space cab truck export and production. We mainly offer mini truck, single cab truck, space cab truck, 1.5-2.5 ton light truck, 3-8 ton light-duty truck, 4WD truck, mini bus, pickup truck, SUV and special vehicles. Our 8 ton space cab trucks have been exported to Jamaica, Ukraine, Russia, Angola, Yemen, Iraq, Egypt, Canada, USA, Bahamas, Poland and Singapore.
| Features of 8 Ton Space Cab Truck |
| Type |
|
8 Ton |
| A/C & Audio |
AM/FM cassette stereo, MP3 interface |
■ |
| AM/FM CD player |
□ |
| Front defroster |
■ |
| A/C |
□ |
| Exterior of light-duty truck |
Front fog lamps |
■ |
| Adjustable height of headlamp |
■ |
| Steel wheels |
■ |
| Metallic paint |
□ |
| Roof-type ventilation |
■ |
| 3-way opening cargo deck |
- |
| 5-way opening cargo deck |
■ |
| Interior of 8 ton space cab truck |
Cigar lighter & ash tray |
■ |
| Fabric seats |
■ |
| Reclining driver seat |
■ |
| Engine tachometer |
■ |
| Wood-grain-style inner trim |
■ |
| Mechanical |
Power assisted steering |
■ |
| Power assisted clutch |
■ |
| Cabin tilting mechanism |
■ |
| Electrical engine stop |
■ |
| Tilting steering wheel |
■ |
| Safety |
Adjustable seat belts |
■ |
| Laminated front wind shield glass |
□ |
| Air pressure gauge |
■ |
| Air brake |
■ |
| Pneumatic parking brake |
■ |
| Exhaust brake |
■ |
| Notice: ■ = Standard □ = Optional - = Not available |
Specification of 8 Ton Space Cab Truck Dimension
| Model |
BJ1126PPU91 |
| Driving type |
LHD |
| Overall length (mm) |
8400 |
| Overall width (mm) |
2350 |
| Overall height of light-duty truck (mm) |
2430 |
| Wheelbase (mm) |
4700 |
| Tread (front/rear) (mm) |
1710/ 1724 |
| Ground clearance (mm) |
180 |
| Curb vehicle weight (kg) |
4310 |
| Gross vehicle weight (kg) |
12505 |
| Payload of 8 ton space cab truck (kg) |
8000 |
| Max. vehicle speed (km/ h) |
≥95 |
| Cargo deck (inside) length (mm) |
6200 |
| Cargo deck (inside) width (mm) |
2150 |
| Cargo deck (inside) height (mm) |
550 |
| Cabin width (mm) |
2000 (3 persons) |
Engine of 8 Ton Space Cab Truck
| Model |
BJ1126PPU91 |
| Engine Model |
CY4102-C3B |
| Type |
Diesel, 4-cylinder, in line, water-cooled, turbo-charged(BOSCH high
pressure common rail), direct injection |
| Intercooler |
With |
| Bore & stroke (mm) |
102x118 |
| Displacement (cc) |
3856 |
| Compression ratio |
18:1 |
| Max. power (hp/rpm) |
136/2800 |
| Max. torque (N.m/rpm) |
420/1300-1500 |
| Emission |
EURO III |
| Fuel tank capacity (L) |
200 |
Drive Train of Light-duty Truck
| Model |
BJ1126PPU91 |
| Clutch |
Hydraulic, single plate, dry type diaphragm spring |
| Gearbox type |
5 speed manual |
| Gearbox model |
LC6T46 |
| Max. gradeability (%) |
≥30(Empty)/ 26(loaded goods) |
Chassis of 8 Ton Space Cab Truck
| Model |
BJ1126PPU91 |
| Frame |
Ladder shaped, "]" section |
| Suspension front/rear |
Leaf springs with shock absorbers |
| Shock absorber front/rear |
Double action shock absorbers |
| Brake front/rear |
Drum/Drum |
| Steering |
Recirculating-ball |
| Brake type |
Air brake |
| Min. turning radius (m) |
10.5 |
| Tires |
8.25-16 |
