Pluto B1 3 ton single cab truck adopts 4-cylinder turbo-charged diesel engine which enables to meet the Euro 1 and Euro 2 emission standards. Our cargo trucks adopt modern cabins with tilting mechanism (1995 mm in width) for convenient daily maintenance and repair. Front disc braking device with air brake system is available for this 3 ton single cab truck. Exhaust brake also can be optional. The maximum speed of our cargo trucks can reach 95 km/h or more.
LANTYPC Vehicle Vehicle Co., Ltd. is a professional manufacturer and supplier of cargo trucks in China. We offer various vehicles including mini truck, light trucks, micro-buses, city buses, pickups, SUVs and CUVs, single cab light trucks, space cab trucks, box trucks, 4WD trucks, electric cars, freezer trucks and semi-trailers. Our 3 ton single cab trucks have been exported to USA, Guatemala, Bahamas, Costa Rica, Ecuador, Venezuela, Colombia, Saint Martin, Bolivia, Malta, Namibia, Sudan, French Polynesia, Poland, Singapore, Yugoslavia and Botswana.
| Features of 3 Ton Single Cab Truck |
| Payload |
3 T |
|
| A/C & Audio |
AM/FM cassette stereo |
■ |
|
| AM/FM CD player |
□ |
|
| Front defroster |
■ |
|
| A/C |
□ |
|
| Exterior |
Front fog lamps |
■ |
|
| Steel wheels |
■ |
|
| 7.50-16 tires |
■ |
|
| 8.25-16 tires |
□ |
|
| Radial tires |
- |
|
| Metallic paint |
□ |
|
| 3-way opening cargo deck |
■ |
|
| 2014 new front face |
□ |
|

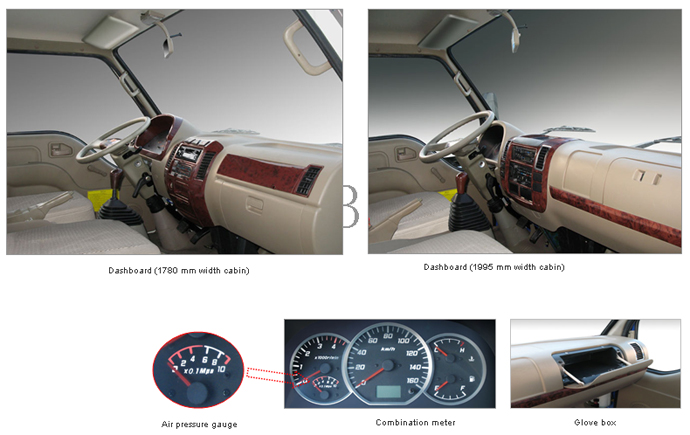

| Interior of cargo truck |
Cigar lighter & ash tray |
■ |
|
| Fabric seats |
■ |
|
| Reclining driver seat |
■ |
|
| Engine tachometer |
■ |
|
| Wood-grain-style inner trim |
■ |
|
| Mechanical |
Air brake + front disc brake |
■ |
|

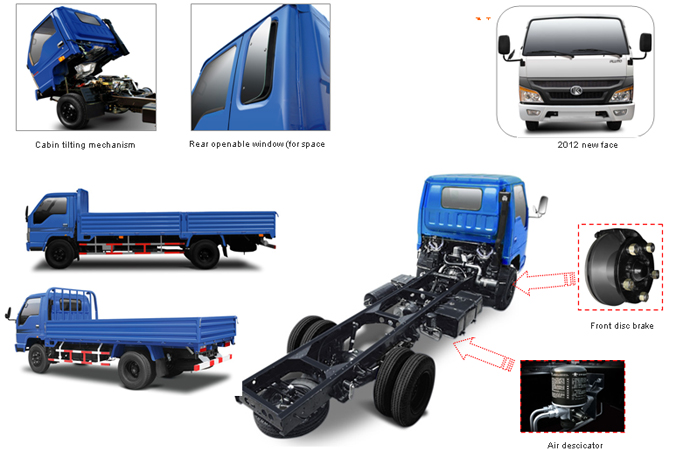

| Cabin tilting mechanism |
■ |
|
| Electrical engine stop |
■ |
|
| Tilting steering wheel |
■ |
|
| Power steering |
□ |
|
| Power assisted clutch |
- |
|
| Safety |
3-points seat belts |
■ |
|
| Laminated front wind shield glass |
□ |
|
| Air pressure gauge |
■ |
|
| Exhaust brake |
□ |
|
| |
|
|
|
| Notice: |
|
|
|
| ■ = Standard □ = Optional - = Not available |
|
Specification of 3 Ton Single Cab Truck Dimension
| Model |
BJ1044P1U53 |
| Driving type |
LHD |
| Overall length (mm) |
5990 |
| Overall width (mm) |
2150 |
| Overall height (mm) |
2220 |
| Cabin width of cargo truck (mm) |
1995 |
| Wheelbase (mm) |
3308 |
| Tread, front/rear (mm) |
1665/1525 |
| Ground clearance (mm) |
180 |
| Cargo deck (inside) length (mm) |
4250 |
| Cargo deck (inside) width (mm) |
2060 |
| Cargo deck (inside) height (mm) |
450 |
| Curb vehicle weight (kg) |
2485 |
| Gross vehicle weight (kg) |
5680 |
| Payload of 3 ton single cab truck (kg) |
3000 |
| Max. vehicle speed (km/h) |
≥95 |
| Seating capacity (persons) |
3 |
Engine of 3 Ton Single Cab Truck
| Model |
CY4102-C3F |
| Type |
4-cylinder,turbo-charged, diesel |
| Bore & stroke (mm) |
102x118 |
| Displacement (cc) |
3707 |
| Compression ratio |
17.5:1 |
| Max. power (kw/rpm) |
66/3200(EURO I), 70/3200(EURO II) |
| Max. torque (N.m/rpm) |
230/1800 |
| Emission |
Euro I / Euro II |
| Fuel tank capacity (L) |
100 |
Drive Train of Cargo Truck
| Model |
BJ1044P1U53 |
| Clutch |
Hydraulic, single plate, dry type diaphragm spring |
| Gearbox type |
5 speed manual |
| Gearbox model |
LC5T97 |
| Max. gradeability (%) |
|
Chassis of 3 Ton Single Cab Truck
| Model |
BJ1044P1U53 |
| Frame |
Ladder shaped,' ]' section |
| Suspension, front/rear |
Leaf springs |
| Shock absorber, front/rear |
Double action shock absorbers |
| Axle, front/rear |
BJ1065 |
| Steering |
Recirculating-ball |
| Brake type |
Air brake |
| Brake, front/rear |
Disc/drum |
| Min. turning radius (m) |
6.5 |
| Tires |
7.50-16 |
