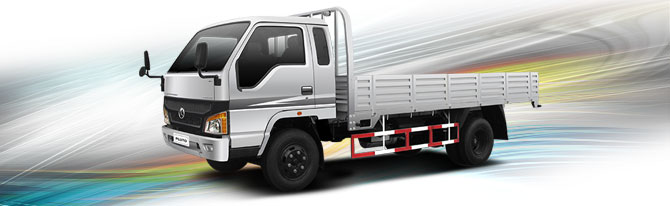

The Pluto B1 3.5 ton space cab truck uses vertical in-line, 4-stroke turbocharged diesel engine which meets the Euro 3 emission standard. Our light lorries can be equipped with hydraulic, single plate and dry type diaphragm spring clutch. 5-speed manual gearbox is installed in our 3.5 ton light truck. This space cab truck can drive up to at least 95 kilometers per hour. Air brake device is available for our light lorries.
We are one of the authorized exporters of many main automobile manufacturing enterprises. Our main scope of business includes space cab truck export and production. We supply mini truck, mini bus, pickup truck, 3.5 ton light truck, single cab mini truck, cargo truck, 1.5 ton light truck, 2.5 ton single cab truck, SUV as well as special vehicles for sale. Each light lorry must be inspected after production, and then receives the quality certificate if passes the inspection. With rich marketing and management experience, our space cab trucks are popular in overseas markets.
Specification of Space Cab Truck Dimension
| Model |
BJ1044PPU53 |
| Driving type |
LHD |
| Overall length (mm) |
5990 |
| Overall width (mm) |
2150 |
| Overall height of space cab truck (mm) |
2290 |
| Wheelbase (mm) |
3308 |
| Tread, front/rear (mm) |
1665/1525 |
| Curb vehicle weight (kg) |
2568 |
| Gross vehicle weight (kg) |
6263 |
| Payload of light lorry (kg) |
3500 |
| Max. vehicle speed (km/h) |
≥95 |
| Cargo body (inside) (mm) |
Length |
3380 |
| Width |
2060 |
| Height |
450 |
| Cabin width (mm) |
1995 |
Engine of 3.5 Ton Light Truck
| Model |
BJ1044PPU53 |
| Engine model |
CA4DC2-10E3 |
| Type |
Vertical in-line, 4 stroke turbo-charged intercooled |
| Bore & stroke (mm) |
98 x 105 |
| Displacement (cc) |
3168 |
| Compression ratio |
18:01 |
| Max. power (kw/rpm) |
80/3200 |
| Max. torque (N.m/rpm) |
245-320/2000 |
| Emission |
Euro 3 |
| Fuel tank capacity (L) |
100 |
Drive Train of Space Cab Truck
| Model |
BJ1044PPU53 |
| Clutch |
Hydraulic, single plate, dry type diaphragm spring |
| Gearbox type |
5 speed manual |
| Gearbox model |
LC5T30 |
| Max. gradeability (%) |
30 |
Chassis of Light Lorry
| Model |
BJ1044PPU53 |
| Frame |
Ladder shaped, ']' section |
| Suspension, front/rear |
Leaf springs |
| Shock absorber, front/rear |
Double action shock absorbers |
| Axle model, front/rear |
BJ1065 |
| Steering |
Recirculating-ball |
| Brake type |
Air brake |
| Brake, front/rear |
Disc/drum |
| Tires |
7.50-16 |
