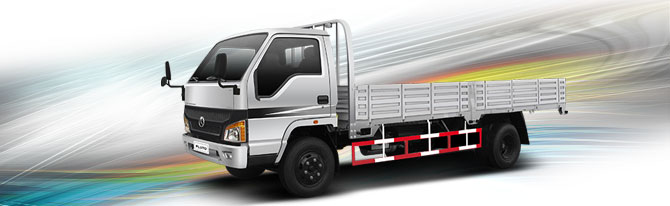

This 4.5 ton single cab truck adopts cabin tilting mechanism, electrical engine stop device as well as power assisted clutch. Our light trucks adopt three-point belt and air pressure gauge for guaranteeing safety. Laminated front wind shield glass and exhaust brake system can be optional.
LANTYPC Vehicle has become a leading and professional light truck supplier and exporter in China depending on the aggressive marketing, innovative product design, strict quality control and excellent after-sales service. Our main products include 4.5 ton single cab truck, mini truck, single cab mini truck, 1.5 ton single cab truck, 2.5 ton space cab cargo truck, 3 ton single cab truck, 3 ton space cab truck, light lorry, 8 ton light truck as well as other small lorry. If you need more information about our 4.5 ton single cab trucks, please contact us.
| Features of 4.5 Ton Single Cab Truck |
| Payload |
|
4.5 T |
| A/C & Audio |
AM/FM cassette stereo |
|
■ |
| AM/FM CD player |
|
□ |
| Front defroster |
|
■ |
| A/C |
|
□ |
| Exterior of light truck |
Front fog lamps |
|
■ |
| Steel wheels |
|
■ |
| 7.50-16 tires |
|
■ |
| 8.25-16 tires |
|
□ |
| Radial tires |
|
- |
| Metallic paint |
|
□ |
| 3-way opening cargo deck |
|
■ |
| 2014 new front face |
|
□ |
| Interior of 4.5 ton single cab truck |
Cigar lighter & ash tray |
|
■ |
| Fabric seats |
|
■ |
| Reclining driver seat |
|
■ |
| Engine tachometer |
|
■ |
| Wood-grain-style inner trim |
|
■ |
| Mechanical |
Air brake + front disc brake |
|
■ |
| Cabin tilting mechanism |
|
■ |
| Electrical engine stop |
|
■ |
| Tilting steering wheel |
|
■ |
| Power steering |
|
□ |
| Power assisted clutch |
|
■ |
| Safety |
3-points seat belts |
|
■ |
| Laminated front wind shield glass |
|
□ |
| Air pressure gauge |
|
■ |
| Exhaust brake |
|
□ |
| |
|
|
|
| Notice: |
|
|
|
| ■ = Standard □ = Optional - = Not available |
|
Specification of 4.5 Ton Single Cab Truck Dimension
| Model |
BJ1065P1U62 |
| Driving type |
LHD |
| Overall length (mm) |
6990 |
| Overall width light truck (mm) |
2200 |
| Overall height (mm) |
2287 |
| Wheelbase (mm) |
3860 |
| Tread (front/rear) (mm) |
1665/1525 |
| Cargo body (inside)Length (mm) |
4830 |
| Cargo body (inside Width(mm) |
2010 |
| Cargo body (inside Height(mm) |
550 |
| Ground clearance (mm) |
205 |
| Curb weight of 4.5 ton single cab truck (kg) |
3450 |
| Gross vehicle weight (kg) |
8145 |
| Payload (kg) |
4500 |
| Max. vehicle speed (km/h) |
≥95 |
| Cabin width (mm) |
1995 |
| Seating capacity (persons) |
3 |
| Approch/departure (°) |
25/14 |
Engine of 4.5 Ton Single Cab Truck
| Model |
BJ1065P1U62 |
| Engine model |
CY4102-C3C |
| Type |
4-cylinder, turbocharged, intercooled, diesel |
| Bore & stroke (mm) |
102 x 118 |
| Displacement (cc) |
3856 |
| Compression ratio |
17.5:1 |
| Max. power(kw/rpm) |
88/2800 |
| Max. torque(N.m/rpm) |
343/1440 |
| Emission |
Euro 2 |
| Fuel tank capacity (L) |
130 |
Drive Train of Light Truck
| Model |
BJ1065P1U62 |
| Clutch |
Hydraulic, single plate, dry type diaphragm spring |
| Gearbox type |
5 speed manual |
| Gearbox model |
LC6T46 |
| Max. gradeability (%) |
30 |
Chassis of 4.5 Ton Single Cab Truck
| Model |
BJ1065P1U62 |
| Frame |
Ladder shaped,' ]' section |
| Suspension, front/rear |
Leaf springs |
| Shock absorber, front/rear |
Double action shock absorbers |
| Axle model, front/rear |
BJ1065 |
| Steering |
Recirculating-ball |
| Brake type |
Air brake |
| Brake, front/rear |
Disc/drum |
| Min. turning radius (m) |
7.5 |
| Tires |
7.50-16 |
