This mini van is equipped with adjustable driver seat with shock absorber, driver sun visor, standard luggage storage and pneumatic folding door. Our 29 seater mini buses can run at the top speed of 85 km/h.
This mini van adopts Dongfeng Cummins engine that has mature technology and great performance. By adopting COAST style body, advanced cathode electrophoresis paint and fully developed chassis, Neptune D6 series mini coaches have been well known in China light bus field.
LANTYPC Vehicle has become a leading mini van manufacture and exporter in China based on the aggressive marketing, innovative product design, strict quality control and excellent after-sales service. Our mini coaches are marketable in overseas markets. We also offer mini truck, light truck, 29 seater mini bus, 26 seat mini bus, 16 seats light bus, 11-15 seats mini van, 4WD truck, box truck and pickup truck. Our 29 seater mini buses must be inspected after production, and then receive the quality certificate if pass the inspection.
| Features of 29 Seater Mini Bus |
| |
DFA6660KC |
DFA6740KC |
| MP3 player |
■ |
■ |
| Cigar lighter & ash tray |
■ |
■ |
| Laminated glass for front windshield |
■ |
■ |
| Seat belt for all seats |
□ |
□ |
| RHD |
□ |
□ |
| Adjustable driver's seat with shock absorber |
■ |
■ |
| Upper fix lower sliding window |
■ |
■ |
| Bamboo flooring (12mm) + ordinary floor leather |
■ |
■ |
| Combination headlights |
■ |
■ |
| Front fog lamps |
■ |
■ |
| Driver fan |
■ |
■ |
| Driver sun visor |
■ |
■ |
| Electronic clock |
■ |
■ |
| Two ventilations |
■ |
■ |
| Side roof rails |
■ |
■ |
| Side luggage rack |
- |
■ |
| Defrosting machine |
■ |
■ |
| Standards luggage storage |
■ |
■ |
| ABS |
□ |
□ |
| A/C (14000W) |
□ |
□ |
| A/C (16000W) |
- |
□ |
| Change luggage rack to be handrail |
□ |
□ |
| Pneumatic folding door |
■ |
■ |
| Automatic swing passenger door |
□ |
□ |
| Two passenger doors |
□ |
□ |
| 8.25R16 tires |
- |
□ |
| Window curtains |
□ |
□ |
| Hard disk player with 17-inch LCD |
□ |
□ |
| Roof rack & ladder |
- |
□ |
| QJ5S550 5 speed gearbox (ZF technology) |
□ |
□ |
| Note: ■ = Standard □ = Optional |
|
|
|
Specification of Mini Van Dimension
| Model |
DFA6740KC |
| Overall length (mm) |
7350 |
| Overall width (mm) |
2260 |
| Overall height of mini coach (mm) |
2800/ 3300 (with roof rack) |
| Wheelbase (mm) |
3800 |
| Ground clearance (mm) |
200 |
| Tread front/rear (mm) |
1860/1612 |
| Curb vehicle weight (kg) |
4710 |
| Gross weight of mini van (kg) |
7350 |
| Seating capacity (persons) |
24-28 |
| Max. speed km/h) |
85 |

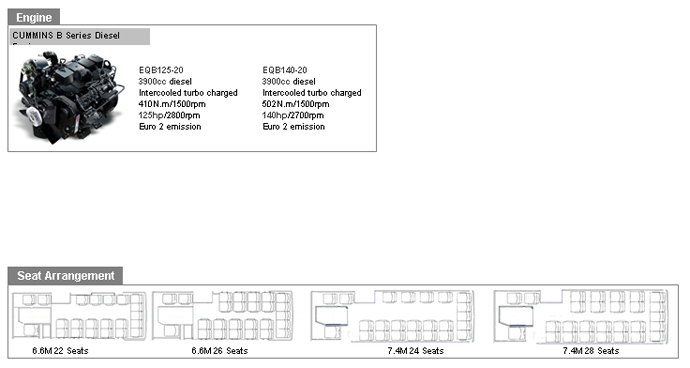

Engine of 29 Seater Mini Bus
| Model |
DFA6740KC |
| Engine model |
EQB140-20, Dongfeng Cummins |
| Type |
Compression-ignition, turbo charge, hydrocooler, direct injection, 4 cylinders, in line, diesel engine |
| Bore & stroke (mm) |
102 |
| Displacement (cc) |
3900 |
| Max. power of mini van (hp/rpm) |
103/2700 |
| Max. torque (N-m/rpm) |
502 |
| Emission standard |
Euro 2 |
| Fuel consumption (L/100KM) |
90 |
Drive Train of 29 Seater Mini Bus
| Model |
DFA6740KC |
| Clutch |
Single plate, dry, diaphragm spring |
| Clutch disc diameter (mm) |
Ø330 diaphragm spring |
| Gearbox Model |
DF5S300 |
| Gearbox Type |
5 gears manual mechanical remote |
| Gearbox Ratio |
5.713/3.368/2.192/1.466/1/R5.98 |
| Final reduction ratio |
4.88 |
| Max. Grade ability (%) |
30 |
Chassis of Mini Van
| Model |
DFA6740KC |
| Frame |
Two ends boxing, section |
| Front axle type |
Hunan Axle |
| Front axle loading capacity |
3000 |
| Rear axle type |
Hunan Axle |
| Rear axle loading capacity |
6000 |
| Suspension front/ rear |
Leaf springs |
| Shock absorber front/ rear |
Double acting telescopic type 11/10 |
| Steering of mini coach |
Power steering |
| Service brake |
Dual circuits air brake, air dryer, exhaust brake |
| Parking brake |
Air brake |
| Assistant brake |
Exhaust brake |
| Electrical system battery |
100A |
| Electrical system alternator |
28V/70A |
| Min. turning radius (m) |
7.25 |
| Tires |
8.25-16 |
| Tires number |
6+1 |
