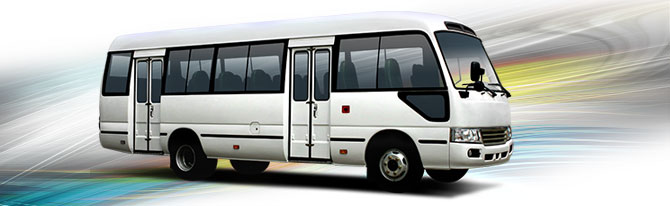

This mini van can be equipped with various engines, such as 4-cylinder engine, water-cooled engine and turbocharged diesel engine. The overall length of this 32 seater mini bus is 7460 mm. Our mini vans are equipped with sun visor for driver, electrical extinguisher, digital clock and hydraulic clutch as well as 5-speed manual gearbox. This minibus has 32 passenger seats including 7 folding seats.
We are a professional minibus manufacturer and mini van exporter in China. In addition to the 32 seater mini bus, we also have micro bus, 11-15 seats mini coach, 16-19 seater mini bus, 26 seater midibus, 29 seater coach, mini truck, light duty truck, box truck, pickup truck, cargo truck as well as special vehicles. Each mini van is set up to provide the maximum ride comfort and safety. The vehicles like 32 seater mini bus should do the customs inspection before exporting.
| Features of Mini Van |
|
| Automatic folding passenger door |
■ |
|
| Cloth seats |
■ |
|
| Sun visor for driver |
■ |
|
| AM/FM with USB connection |
■ |
|
| Front defroster |
■ |
|
| Electrical extinguisher |
■ |
|
| Front fog lamps |
■ |
|
| Engine tachometer |
■ |
|
| Digital clock |
■ |
|
| Seat belts (for diver seat, seat by the door, front two seats only) |
■ |
|
| |
| Cathode electrophoresis paint |
■ |
|
| Electrical fan for driver (for bus without A/C) |
■ |
|
| Side inner luggage rack (for bus without A/C) |
■ |
|
| Cigar lighter & ash tray |
■ |
|
| Laminated glass for slide window |
■ |
|
| Laminated glass for front windshield |
■ |
|
| Power steering (For JNQ6701 & JNQ6750 only) |
■ |
|
| Rear opening doors |
□ |
|
| Rear heaters for passengers |
□ |
|
| Seat belt for other seats |
□ |
|
| Additional seat for minibus |
□ |
|
| Plastic seat |
□ |
|
| Reclining passenger’s seat |
□ |
|
| Passenger seat’s armrest |
□ |
|
| Side window curtain |
□ |
|
| Air-conditioning |
□ |
|
| Rear washer, wiper & mirror |
□ |
|
| Rear high-mounted brake lamp |
□ |
|
| Radial tires (based on 7.50-16) |
□ |
|
| Aluminum wheel cover |
□ |
|
| CD Player |
□ |
|
| VCD + 15inch displayer |
□ |
|
| DVD+15inch displayer |
□ |
|
| ABS |
□ |
|
| Metallic painting |
□ |
|
| RHD |
□ |
|
| Note: ■ = Standard □ = Optional |
|
|
|
Specification of 32 Seater Mini Bus Dimension
| Model |
JNQ6750 |
| Overall length (mm) |
7460 |
| Overall width (mm) |
2040 |
| Overall height of mini van (mm) |
2730 |
| Wheelbase (mm) |
3800 |
| Ground clearance (mm) |
1140/ 2010 |
| Tread front/rear (mm) |
220 |
| Curb weight of minibus (kg) |
4150 |
| Gross vehicle weight (kg) |
6500 |
| Seating capacity (persons) |
32 (includes 7 folding seats) |
Engine of 32 Seater Mini Bus
| Model |
JNQ6750 |
| Engine model |
CY4102BZLQ |
CUMMINS EQB125-20 |
| Type |
Diesel, 4-cylinder, in line, water-cooled, direct injection, diesel, turbocharged, intercooled |
Diesel, 4-cylinder, in line, water-cooled, direct injection, diesel, turbocharged, intercooled |
| Bore & stroke (mm) |
102X118 |
102X120 |
| Displacement (cc) |
3856 |
3920 |
| Max. power of mini van (hp/rpm) |
120/2800 |
125/2800 |
| Max. torque (N-m/rpm) |
343/1400-1800 |
410/1500 |
| Fuel consumption (L/100KM) |
80 |
- |
Drive Train of 32 Seater Mini Buses
| Model |
JNQ6750 |
| Clutch |
Hydraulic, Single plate, dry type diaphragm spring |
| Clutch disc diameter (mm) |
φ330 |
| Gearbox Model |
DF5S300 (DF5S-550 for CUMMINS engine version) |
| Gearbox Type |
5 speed manual |
| Gearbox Ratio |
4.766/2.534/1.509/1/0.764/ R4.575 |
| Final reduction ratio |
6.142 |
| Max. Grade ability (%) |
30 |
Chassis of Mini Van
| Model |
JNQ6750 |
| Frame |
Integrated |
| Front axle type |
I beam section |
| Front axle loading capacity |
1710 |
| Rear axle type |
Final reduction, double curve gear |
| Rear axle loading capacity |
3000 |
| Suspension front/ rear |
Leaf springs |
| Shock absorber front/ rear |
Double acting telescopic type 11/10 |
| Steering of minibus |
Integrated, Power-assisted |
| Service brake |
Dual circuits air brake |
| Parking brake |
Energy-storage spring type |
| Assistant brake |
Exhaust brake (Optional) |
| Electrical system battery |
12V 20AH×2 |
| Electrical system alternator |
24V 120A |
| Min. turning radius (m) |
8 |
| Tires |
7.50-16 |
