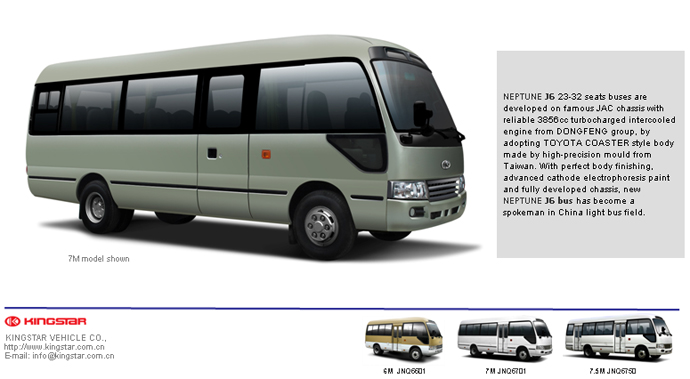

This 23 seater mini bus adopts famous JAC chassis with reliable 3856cc turbocharged intercooled engine from Dongfeng Group, COAST style body and advanced cathode electrophoresis paint. The overall length of this mini coach is 5990 mm.
Our 23 seater mini buses are configured with automatic folding passenger door, electrical extinguisher and electrical fan for driver. Both service brake and parking brake system are installed in this mini coach for ensuring security.
As a mini coach manufacturer and light bus supplier in China, LANTYPC Vehicle offers mini truck, light duty truck, 23 seater mini bus, 26 seat minibus, 11-15 seats mini van, 4WD truck, box truck and pickup truck, single cab light truck, micro bus, space cab cargo truck as well as special vehicles. Our mini coaches have been exported to Canada, Honduras, El Salvador, Bahrain, UAE, USA, Guatemala, Bahamas, Costa Rica, Ecuador, Venezuela, Colombia, Saint Martin, Bolivia and other countries.
| Features of 23 Seater Mini Buses |
|

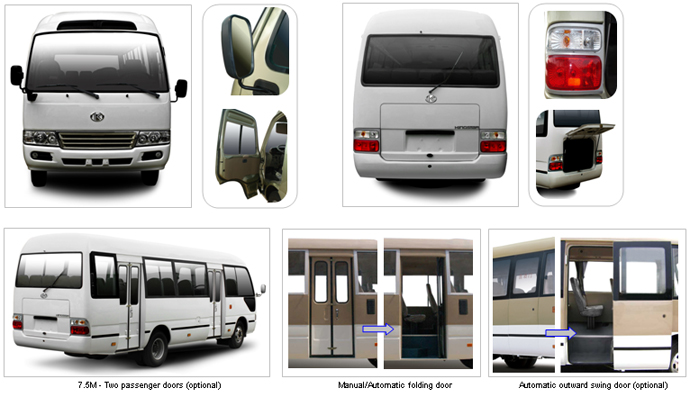

| Automatic folding passenger door |
■ |
|

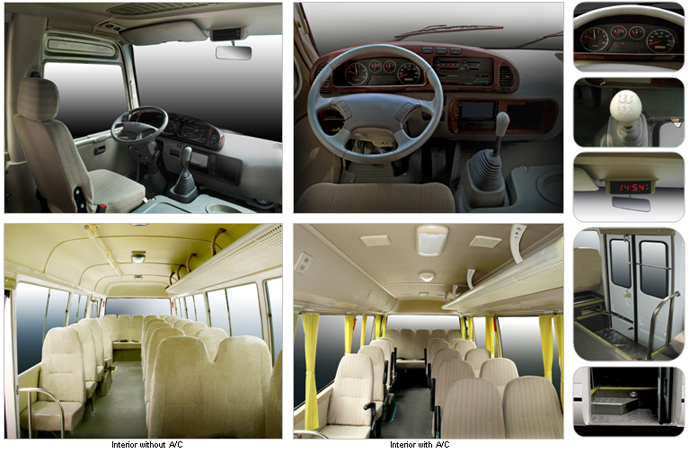

| Cloth seats |
■ |
|
| Sun visor for driver |
■ |
|
| AM/FM with USB connection |
■ |
|
| Front defroster |
■ |
|
| Electrical extinguisher |
■ |
|
| Front fog lamps |
■ |
|
| Engine tachometer |
■ |
|
| Digital clock |
■ |
|
| Seat belts (for diver seat, seat by the door, front two seats only) |
■ |
|
| |
| Cathode electrophoresis paint |
■ |
|
| Electrical fan for driver (for bus without A/C) |
■ |
|
| Side Inner luggage rack (for bus without A/C) |
■ |
|
| Cigar lighter & ash tray |
■ |
|
| Laminated glass for slide window |
■ |
|
| Laminated glass for front windshield |
■ |
|
| Power steering (For JNQ6701 & JNQ6750 only) |
■ |
|
| Rear opening doors |
□ |
|
| Rear heaters for passengers |
□ |
|
| Seat belt for other seats |
□ |
|
| Additional seat |
□ |
|
| Plastic seat |
□ |
|
| Reclining passenger’s seat |
□ |
|
| Passenger seat’s armrest |
□ |
|
| Side window curtain |
□ |
|
| Air-conditioning |
□ |
|
| Rear washer, wiper & mirror |
□ |
|
| Rear high-mounted brake lamp |
□ |
|
| Radial tires (based on 7.50-16) |
□ |
|
| Aluminum wheel cover |
□ |
|
| CD Player |
□ |
|
| VCD + 15inch displayer |
□ |
|
| DVD+15inch displayer |
□ |
|
| ABS |
□ |
|
| Metallic painting |
□ |
|
| RHD |
□ |
|
| Note: ■ = Standard □ = Optional |
|
|
|
Specification of 23 Seater Mini Buses Dimension
| Model |
JNQ6601 |
| Overall length (mm) |
5990 |
| Overall width (mm) |
2040 |
| Overall height of mini coach (mm) |
2600 |
| Wheelbase (mm) |
3308 |
| Ground clearance (mm) |
180 |
| Tread front/rear (mm) |
1665/ 1525 |
| Curb weight of light bus (kg) |
3220 |
| Gross vehicle weight (kg) |
4710 |
| Seating capacity (persons) |
19+4 |

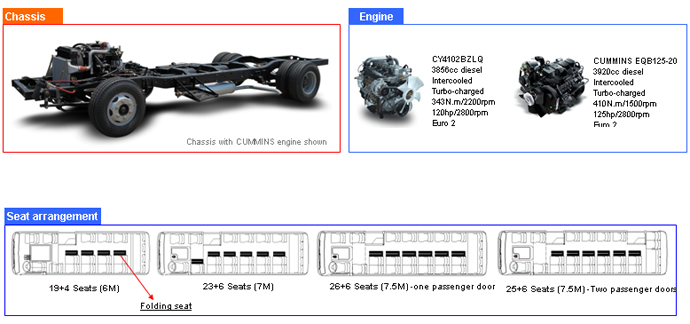

Engine of 23 Seater Mini Buses
| Model |
JNQ6601 |
| Engine model |
CY4102BZLQ |
CUMMINS EQB125-20 |
| Type |
Diesel, 4-cylinder, in line, water-cooled, direct injection, diesel, turbocharged, intercooled |
Diesel, 4-cylinder, in line, water-cooled, direct injection, diesel, turbocharged, intercooled |
| Bore & stroke (mm) |
102X118 |
102X120 |
| Displacement (cc) |
3856 |
3920 |
| Max. power of mini coach (hp/rpm) |
120/2800 |
125/2800 |
| Max. torque (N-m/rpm) |
343/1400-1800 |
410/1500 |
| Fuel consumption (L/100KM) |
80 |
|
Drive Train of 23 Seater Mini Buses
| Model |
JNQ6601 |
| Clutch |
Hydraulic, Single plate, dry type diaphragm spring |
| Clutch disc diameter (mm) |
φ330 |
| Gearbox model |
DF5S300 (DF5S-550 for CUMMINS engine version) |
| Gearbox type |
5 speed manual |
| Gearbox ratio |
4.766/2.534/1.509/1/0.764/ R4.575 |
| Final reduction ratio |
5.375 |
| Max. Grade ability (%) |
30 |
Chassis of 23 Seater Mini Buses
| Model |
JNQ6601 |
| Frame |
Integrated |
| Front axle type |
I beam section |
| Front axle loading capacity |
1710 |
| Rear axle type |
Final reduction, double curve gear |
| Rear axle loading capacity |
3000 |
| Suspension front/ rear |
Leaf springs |
| Shock absorber front/ rear |
Double acting telescopic type 11/10 |
| Steering of mini coach |
Integrated, Power-assisted |
| Service brake |
Dual circuits air brake |
| Parking brake |
Energy-storage spring type |
| Assistant brake |
Exhaust brake (Optional) |
| Electrical system battery |
12V 20AH×2 |
| Electrical system alternator |
24V 100A |
| Min. turning radius (m) |
8 |
| Tires |
7.00-16 |
