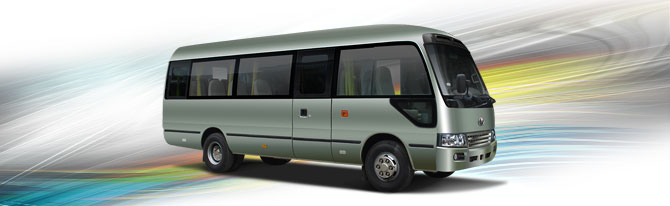

This mini bus with an overall length of 7000 mm can carry 29 passengers including 6 folding seats. The 29 seater coach is appointed with automatic folding passenger door, cloth seats, engine tachometer, AM/FM with USB connection and side inner luggage rack. The additional seats, side window curtain, air-conditioning as well as CD player can be adopted for this midibus.
With unitary body, the strength of this mini bus can reach up to three to six times of the ordinary midibus. Meanwhile, this 29 seater coach can distribute the strength to all of the points in a twinkling so that passengers can get the biggest safety space.
Our products include mini truck, light truck, 11-15 seats mini van, 16-19 seater mini bus, 26 seater midibus, 29 seater coach, box truck and pickup truck, micro bus, cargo truck as well as special vehicles. LANTYPC Vehicle has become a leading and professional mini bus manufacturer and export company depending on the aggressive marketing, innovative product design, strict quality control and excellent after-sales service. Each mini bus is set up to provide the maximum ride comfort and safety.
| Features of Mini Bus |
|
| Automatic folding passenger door |
■ |
|
| Cloth seats |
■ |
|
| Sun visor for driver |
■ |
|
| AM/FM with USB connection |
■ |
|
| Front defroster |
■ |
|
| Electrical extinguisher |
■ |
|
| Front fog lamps |
■ |
|
| Engine tachometer |
■ |
|
| Digital clock |
■ |
|
| Seat belts (for diver seat, seat by the door, front two seats only) |
■ |
|
| |
| Cathode electrophoresis paint |
■ |
|
| Electrical fan for driver (for bus without A/C) |
■ |
|
| Side inner luggage rack (for bus without A/C) |
■ |
|
| Cigar lighter & ash tray |
■ |
|
| Laminated glass for slide window |
■ |
|
| Laminated glass for front windshield |
■ |
|
| Power steering (For JNQ6701 & JNQ6750 only) |
■ |
|
| Rear opening doors |
□ |
|
| Rear heaters for passengers |
□ |
|
| Seat belt for other seats |
□ |
|
| Additional seat for this mini bus |
□ |
|
| Plastic seat |
□ |
|
| Reclining passenger’s seat |
□ |
|
| Passenger seat’s armrest |
□ |
|
| Side window curtain |
□ |
|
| Air-conditioning |
□ |
|
| Rear washer, wiper & mirror |
□ |
|
| Rear high-mounted brake lamp |
□ |
|
| Radial tires (based on 7.50-16) |
□ |
|
| Aluminum wheel cover |
□ |
|
| CD Player |
□ |
|
| VCD + 15inch displayer |
□ |
|
| DVD+15inch displayer |
□ |
|
| ABS |
□ |
|
| Metallic painting |
□ |
|
| RHD |
□ |
|
| Note: ■ = Standard □ = Optional |
|
|
|
Specification of Mini Bus Dimension
| Model |
JNQ6701 |
| Overall length (mm) |
7000 |
| Overall width (mm) |
2040 |
| Overall height of midibus (mm) |
2730 |
| Wheelbase (mm) |
3800 |
| Ground clearance (mm) |
1140/ 2010 |
| Tread front/rear (mm) |
220 |
| Curb weight of mini bus (kg) |
4150 |
| Gross vehicle weight (kg) |
6500 |
| Seating capacity (persons) |
29 (includes 6 folding seats) |
Engine of 29 Seater Coach
| Model |
JNQ6701 |
| Engine model |
CY4102BZLQ |
CUMMINS EQB125-20 |
| Type |
Diesel, 4-cylinder, in line, water-cooled, direct injection, diesel, turbocharged, intercooled |
Diesel, 4-cylinder, in line, water-cooled, direct injection, diesel, turbocharged, intercooled |
| Bore & stroke (mm) |
102X118 |
102X120 |
| Displacement (cc) |
3856 |
3920 |
| Max. power of midibus (hp/rpm) |
120/2800 |
125/2800 |
| Max. torque (N-m/rpm) |
343/1400-1800 |
410/1500 |
| Fuel consumption (L/100KM) |
80 |
|
Drive Train of Mini Bus
| Model |
JNQ6701 |
| Clutch |
Hydraulic, Single plate, dry type diaphragm spring |
| Clutch disc diameter (mm) |
φ330 |
| Gearbox model |
DF5S300 (DF5S-550 for CUMMINS engine version) |
| Gearbox type |
5 speed manual |
| Gearbox ratio |
4.766/2.534/1.509/1/0.764/ R4.575 |
| Final reduction ratio |
6.142 |
| Max. grade ability (%) |
30 |
Chassis of 29 Seater Coach
| Model |
JNQ6701 |
| Frame |
Integrated |
| Front axle type |
I beam section |
| Front axle loading capacity |
1710 |
| Rear axle type |
Final reduction, double curve gear |
| Rear axle loading capacity |
3000 |
| Suspension front/ rear |
Leaf springs |
| Shock absorber front/ rear |
Double acting telescopic type 11/10 |
| Steering of mini bus |
Integrated, Power-assisted |
| Service brake |
Dual circuits air brake |
| Parking brake |
Energy-storage spring type |
| Assistant brake |
Exhaust brake (Optional) |
| Electrical system battery |
12V 20AH×2 |
| Electrical system alternator |
24V 120A |
| Min. turning radius (m) |
8 |
| Tires |
7.50-16 |
