This passenger van can carry seven or eight persons. Quality, design and functions are key concepts in the development of Jupiter minibus. This micro bus adopts middle engine rear drive device and 5-speed manual gearbox. Our passenger van runs at the top speed of 130 km/h. This micro bus is equipped with steering column lock, high-mount stop lamp and child-proof rear door lock to ensure safety.

LANTYPC Vehicle has become a leading and professional exporter of passenger vans based on the aggressive marketing, innovative product design, strict quality control and excellent after-sales service. In addition to micro bus, we also provide mini truck, light duty truck, single cab light truck, space cab cargo truck, 2.5 ton lorry, tipper truck, box truck, 4WD truck, minibus, light bus, pickups, sport utility vehicle, electric car, freezer truck and semi-trailer. If you need our passenger vans, please contact us.

PLUTOBW6 Micro Bus

　　　　　　　　　

SPECIFICATIONS
Series		V6					V8
Model		BJ6400MAA2	BJ6400MAA1				BJ6420MAA1
Fuel type		Gasoline
Driving		Rear drive, middle engine
DIMENSION & WEIGHT
Overall length	(mm)	4012					4212
Overall width	(mm)	1656					1656
Overall height	(mm)	1910					1910
Wheel base	(mm)	2650					2850
Tread, front/ rear	(mm)	1415/1430					1415/1430
Curb vehicle weight	(kg)	1206					1216
Gross vehicle weight	(kg)	1876					1886
Seating capacity	(persons)	5-8					5-8
SYSTEM
Gearbox		5 speed manual
Steering		Manual rack & pinion
Suspension	Front	MacPherson independent suspension
	Rear	5 longitudinal leaf springs
Brake	Front/ rear	Front disc, rear drum, hydraulic, dual loop
Tires		175/70R14
Max. vehicle speed	(km/h)	130
ENGINE
Model		LJ465QR1E1	LJ474QE1
Type		4-cylinder in line, 4 stroke	4-cylinder in line, 4-stroke, EFI(electronic fuel injection)
Displacement	(cc)	998	1298
Bore x stroke	(mm)	65.5x75	74x76
Compression ratio		9.5:1	9.5:1
Max. power	(kW/r/min)	45/5600	60.5/6000
Max. torque	(N.m/r/min)	85/3500-4000	102/3000-3500
Emission		Euro 4	Euro 4

FEATURES
Series			V6			V8
Type			Basic	Standard	Comfy	Basic	Standard	Comfy
A/C & Audio	AM/FM radio + MP3 port(with digital clock)		■	■	■	■	■	■
	Single disc CD player + MP3 USB port(with digital clock)		-	-	■	-	-	■
	2 speakers		■	■	-	■	■	-
	4 speakers		-	-	■	-	-	■
	Front A/C		□	□	■	□	■	■
	Dual A/C (for 1.3L engine)		□	□	■	□	■	■
Exterior	Bumpers in black		■	-	-	■	-	-
	Bumpers in vehicle body color		-	■	■	-	■	■
	Protective board for engine		-	■	■	-	■	■
	Steel wheels		■	-	-	■ with wheel cover	-	-
	Aluminum-alloy wheels		-	■	■	-	■	■
	Rear spoiler		-	-	■	-	■	■
	Chrome outside door handles		-	-	■	-	-	■
	Lower skirt		-	■	■	-	■	■
	Front grille in black		■	-	-	■	-	-
	Front grille in vehicle body color		-	■	■	-	■	■
	Decoration for B&C Pillars		-	-	■	-	-	■
	Manual rearview mirrors in black		■	-	-	■	-	-
	Manual outside rearview mirrors in vehicle body color		-	■	■	-	■	■

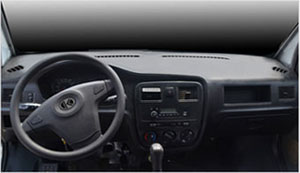

Interior	Economical type interior		■	-	-	■	-	-
	Semi-surrounding type interior		-	■	■	-	■	■
	Power windows(front)		-	■	■	-	■	■
	Roof mount handle for co-driver		■	■	■	■	■	■
	Roof mount handles		-	3pcs	5pcs	-	3pcs	5pcs
	Door light		-	■	■	-	■	■
	Lighter		■	■	■	■	■	■
	Sun visor for co-driver		-	■	■	-	■	■
Seats	Fabric-trimmed seats		■	■	-	■	■	-
	Cloth-trimmed seats		-	-	■	-	-	■
Driving & safety	Tilt steering wheel		-	-	■	-	-	■
	Power steering		-	-	■	-	-	■
	ABS+EBD		□	□	□	□	□	□
	Backup radar		□	□	□	□	□	□
	Manual central door lock		-	■	-	-	■	-
	Remote control central door lock		-	-	■	-	-	■
	Steering column lock		■	■	■	■	■	■
	Front fog lamp		-	■	■	-	■	■
	High-mount stop lamp		■	■	■	■	■	■
	Child-proof rear door lock		■	■	■	■	■	■
	Rear windshield glass wiper & defroster		-	-	■	-	-	■
Note: ■ = Standard; □ = Optional;  - = Not available
