Features of 2WD Pickup Truck
1. This double cab pickup adopts 2.2 L and 2.4 L gasoline engines or 2.8 L and 3.2 L diesel engines.
2. The wheelbase of this 2WD pickup truck reaches 2900 mm.
3. The overall size is 5850x4750x1735 mm.
4. Our double cab pickups are large enough to seat up 5 persons.
5. This 2WD pickup truck is equipped with front independent suspension, front disc and rear drum braking system.
6. Various colors are available for this double cab pickup, such as black, red, silver, white, blue, yellow as well as grey.
Description
The 2WD pickup truck can be used by the police departments in areas where a cruiser is not suitable for terrain requirements. 2WD double cab pickup trucks are also available for the search and rescue operations since they are designed to handle rugged terrain.

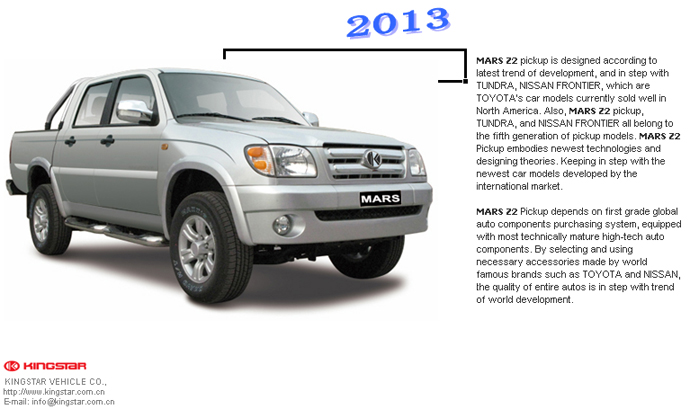

Our 2WD pickup trucks are manufactured according to the latest trend of development, and they keep in step with Tundra and Nissan Frontier. We select and use necessary accessories made by world famous brands such as Toyota and Nissan, so as to ensure the quality of our double cab pickups.
LANTYPC Vehicle Vehicle Co., Ltd. is a professional 2WD pickup truck manufacturer and supplier in China. We provide not only double cab pickup, but also single cab pickup. In addition to pickup truck, we also supply mini truck, light truck, micro bus, mini bus, cargo van, SUV, electric car, ambulance, freezer truck and semi-trailer. Our 2WD pickup trucks have been exported to Jamaica, Ukraine, Russia, Iraq, Egypt, Cyprus, Canada, Honduras, USA, French Polynesia, Poland, Singapore, Yugoslavia and Botswana.
Specification of 2WD Pickup Truck Dimension
| Model |
BQ1023Y2V |
BQ1023G-G3 |
BQ1023N8V |
BQ1023Q |
| Fuel Type |
Gasoline |
Gasoline |
Gasoline |
Diesel |
| Driving type |
2WD |
2WD /4WD |
2WD |
4WD |
| Overall length (mm) |
5080 |
5080 |
5080 |
5080 |
| Overall width (mm) |
1750 |
1750 |
1750 |
1750 |
| Overall height of double cab pickup (mm) |
1735 |
1735 |
1735 |
1735 |
| Wheelbase (mm) |
2900 |
2900 |
2900 |
2900 |
| Tread, front/rear (mm) |
1472/1477 |
1472/1477 |
1472/1477 |
1472/1477 |
| Cargo body inside (mm) |
1400(L) X 1505 (W) X 480 (H) |
| Ground clearance (mm) |
200 |
200 |
200 |
200 |
| Curb vehicle weight (kg) |
1520 |
1610 |
1650 |
1750 |
| Gross vehicle weight (kg) |
2345 |
2435 |
2475 |
2575 |
| Seating capacity (persons) |
5 |
5 |
5 |
5 |
| Fuel tank capacity (L) |
60 |
73 |
60 |
73 |
Engine of 2WD Pickup Truck
| Model |
BQ1023Y2V |
BQ1023G |
BQ1023N8V |
BQ1023Q |
| Engine model |
XG491Q-ME |
4G69S4N |
4JB1 |
CYQD32T |
| Type |
Gasoline, 4-cylinder, EFI |
Gasoline, 4-cylinder, DOHC, EFI |
Diesel, 4-cylinder, direct injection |
Diesel, 4-cylinder, turbocharged intercooled |
| Technology source |
Toyota 4Y |
Mitsubishi |
Isuzu |
Nissan QD32 |
| Displacement (cc) |
2237 |
2378 |
2771 |
3153 |
| Max. power of double cab pickup (hp/rpm) |
103/4600 |
136/5250 |
78/3600 |
1106/3600 |
| Max. torque (N-m/rpm) |
193/2200 |
200/2500~3000 |
147/2000 |
221/2200 |
| Fuel consumption (L/100KM) |
≤8.3 |
≤8.5 |
≤7 |
≤7.5 |
| Emission |
Euro 2 |
Euro 3 |
Euro 1 |
Euro 2 |
System of 2WD Pickup Truck
| Gearbox |
5 speed manual, floor shift |
| Steering |
Circulating-ball, power-assisted |
| Suspension front |
Dual arms with torsion bar springs independent
suspension, with telescopic shock absorbers |
| Suspension rear of double cab pickup |
Variable rate asymmetric leaf springs |
| Braking front / rear |
Ventilated disc/ Leading & trailing drums |
| Clutch |
Single plate, dry type diaphragm spring with tensional vibration damper |
| Min. turning radius (m) |
6.5 |
| Tires |
215/75R15 or235/70R16 |
