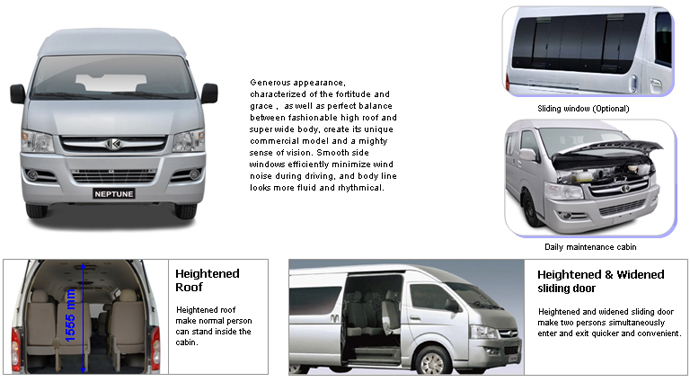

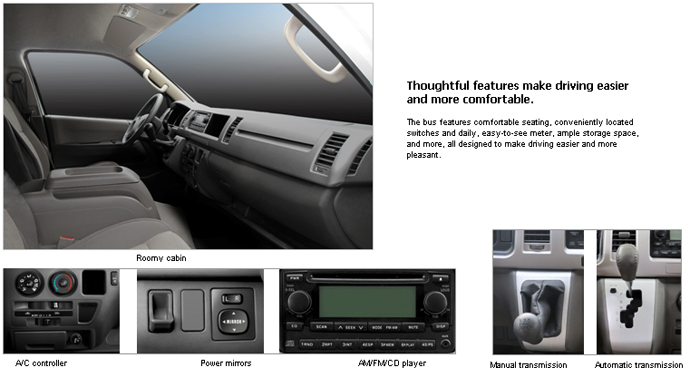

The 16 seater mini bus with generous appearance is characterized by perfect balance between high roof and super wide body, comfortable seating and easy-to-see meter, as well as ample storage space. This mini coach adopts fabric seating with adjustable head restraints and seatbacks that can effectively reduce fatigue on long trips.

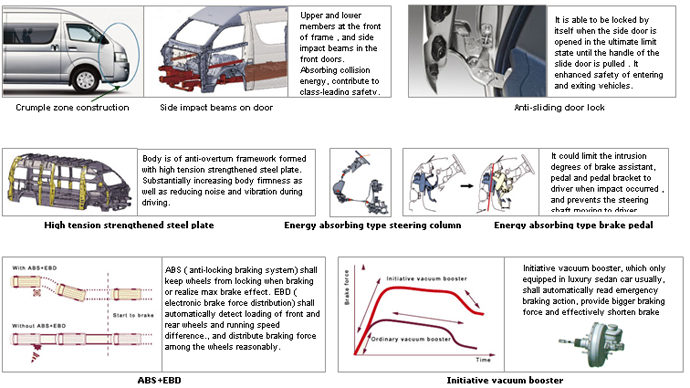

ABS (anti-locking braking system) shall keep wheels from locking when braking. Additionally, this 16 seater mini bus can realize the maximum brake effect. With EBD (electronic brake force distribution),this mini coach enables to automatically detect loading of front and rear wheels and running speed difference, and then it can distribute braking force among the wheels reasonably.
Our 16 seater mini buses are marketable in overseas markets according to our rich marketing and management experience. LANTYPC Vehicle has become a leading and professional mini coach exporter depending on the aggressive marketing, innovative product design, strict quality control and excellent after-sales service. We provide mini truck, light duty truck, mini bus, micro bus, tipper truck, cargo truck, cargo van, mini van and mini coach for sale. We offer excellent pre-sale, in-sale and after-sale services for our clients.
| Features of 16 Seater Mini Bus |
| A/C & Audio |
AM/FM/MP3 port/CD player with 1 disc changer |
■ |
| 6 speakers |
■ |
| DVD player with back-up displayer |
□ |
| Air conditioner |
■ |
| Front heater |
■ |
| Rear heater |
■ |
| Exterior of mini coach |
Aluminum alloy wheels |
■ |
| Steel whels (optional for 5.4M bus only) |
□ |
| Side dark gray glasses (fully-closed) |
■ |
| 1 sliding passenger door |
■ |
| 1 sunroof |
- |
| Chrome power outside mirrors (only for LHD) |
■ |
| Power driver’s windows |
■ |
| Remote control door lock |
■ |
| Manual control door lock |
□ |
| Rear windshield glass wiper & washer & defroster |
■ |
| Fully-closed passenger windows |
■ |
| Sliding side windows |
□ |
| Color body strip |
□ |

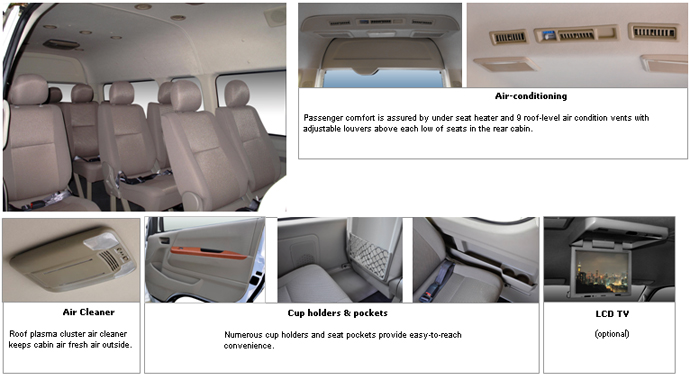

| Interior of 16 seater mini bus |
Glare-proof inner rear view mirror |
■ |
| wood-grain-style inner trim |
- |
| Fabric seats |
■ |
| Luxury flocked carpet |
■ |
| Quartz sand PVC floor mat |
□ |
| Plasma air cleaner |
□ |
| 1 more seat between driver seat and sub-driver seat |
□ |
| Safety |
ABS+EBD brake system |
■ |
| High mount stop lamp |
■ |
| Back-up radar |
■ |
| Four wheel disc brake (not for 6 M bus) |
□ |
| Mechanical |
Power steering |
■ |
| Tilt steering wheel |
■ |
| Note: ■= Standard □ = Optional - =Not available |
Specification of 16 Seater Mini Bus Dimension
| Model |
HKL6540 (LHD)
HKL6540R (RHD) |
HKL6540C (LHD)
HKL6540RC (RHD) |
| Fuel type |
gasoline |
diesel |
| Overall size (L×W×H) (mm) |
5380x1880x2285 |
5380x1880x2285 |
| Wheelbase (mm) |
3110 |
3110 |
| Tread, front/rear (mm) |
1655/1650 |
1655/1650 |
| Min. ground clearance (mm) |
155 |
155 |
| Curb vehicle weight (kg) |
2130 |
2205 |
| Gross weight of mini coach (kg) |
3300 |
3405 |
| Seating capacity (persons) |
13-16 |
13-16 |
| Fuel tank capacity (L) |
70 |
70 |
| Tires |
195R15C |
195R15C |

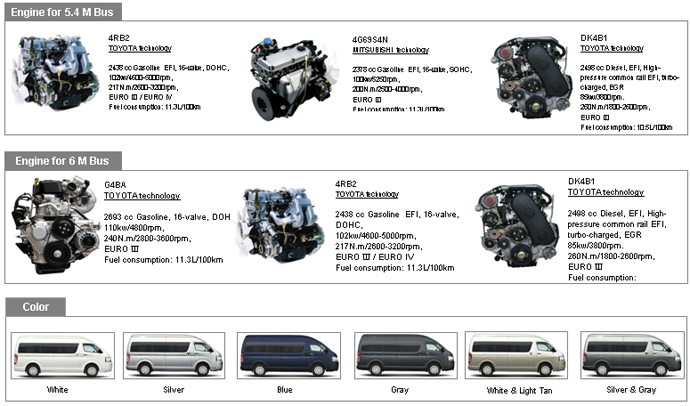

Engine of 16 Seater Mini Bus
| Model |
HKL6540 (LHD)
HKL6540R (RHD) |
HKL6540C (LHD)
HKL6540RC (RHD) |
|
| Engine |
4RB2 |
DK4B1 |
4G69S4N |
| Fuel type |
Gasoline |
Diesel |
Gasoline |
| Type |
Four stroke, water cooling,
in-line, 16-valve, DOHC, EFI |
16-valve.DOHC,
inter-cooling,
turbocharged |
Four stroke, water cooling,
in-line, 16-valve, SOHC, EFI |
| Displacement(cc) |
2438 |
2498 |
2378 |
| Compression ratio |
9.2:1 |
18.5:1 |
9.8:1 |
| Max. Power of mini coach (kw/rpm) |
102/4600-5000 |
85/3800 |
100/5250 |
| Max. torque (Nm/rpm) |
217/2600-3200 |
280/1800-2600 |
200/2500-4000 |
| Fuel consumption (L/100km) |
11.3 |
10.5 |
11.3 |
| Emission |
EURO Ⅲ / EURO IV |
EURO Ⅲ |
EURO Ⅲ |
| Technology source |
TOYOTA |
TOYOTA |
MITSUBISHI |
System of 16 Seater Mini Buses
| Steering system |
Pinion-and-rack |
| Suspension front |
Double wishbone independent suspension |
| Suspension rear |
Variable rate leaf spring |
| Clutch type |
Single disc, hydraulic control |
| Gearbox |
5 speed manual |
| Max. gradeability (%) |
≥30 |
